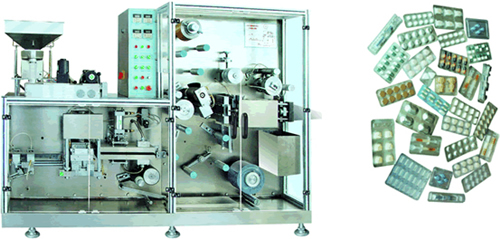

DPH130A型鋁塑泡罩包裝機
發布日期：2018-06-13 15:19:06 點擊：12372
DPH130A 型鋁塑泡罩包裝機是輥+板結合的鋁塑泡罩包裝機。它集板式與輥式包裝機的長處于一體，是目前世界上較為先進的多功能包裝機。
該機的、電、氣、水等功能，全部由電腦控制，全封閉式工作，布局合理，各工作部位維修、清理及檢修為方便，主要零部件均采用不銹鋼和鋁合金材料精工制成。整機符合制藥行業所需求的“GMP”標準。
該機可與通用上料機、掉頭上料機、圓盤上料機配套使用?？勺詣哟螂p批號，壓撕裂線。其主要元器件均采用進口。
主要技術參數:
1、包裝范圍：各種規格的片劑、膠囊、膠丸、素片及各種異型片。
2、成型方式：正壓成型，間歇工作。
3、成型面積及深度：Ma×130×170（mm）Ma×13（mm）
4、熱封方式：輥式連續工作
5、最大步進距離：210（mm）
6、包裝材料：PVC130×0.25（mm）PTP130×0.02（mm）
7、沖裁次數：≥60次/分
8、耗氣量：300L/min
9、耗水量：3.2L/min
10、電源總功率：11KW
11、電壓：380V/50HZ
12、外形尺寸（長×寬×高）：2285×820×1750（mm）
13、重量：1600kg
DPH130A DPH130B Aluminum-plastic Blister Packing Machine
DPH130A aluminum-plastic blister packing machine combined with roller and plate, which incorporates the advantages of the plate type packing machine and the roller type packing machine. It is an advanced multi-function packing machine in the world at present.
The function such as electricity gas and water are controlled by computer. The machine works in a totally enclosed manner with reasonable layout. It is convenient to maintain clean and overhaul. The whole machine is finely manufactured of stainless steel and aluminum alloy. The machine is accordance with the national manufacturing pharmacy GMP standard.
The machine can cooperate with feeding machine, turn-around feeding machine and disc feeding machine. The machine can seal double batch number automatically and line. The main parts adopted in the machine are exported from the abroad.
Specifications:
1. Packing Range: all kinds of tablets, capsules, CAP, plain tablets and abnormal tablets.
2. Forming Manner: Positive pressing mould, operation intermittently.
3.Forming area and depth: Ma×130×170（mm）Ma×13（mm）
4. Heat-sealing Manner: Roller continuous operation
5.Max step-over: 210（mm）
6. wrapper: PVC130×0.25（mm）PTP130×0.02（mm）
7. Cutting Frequency: ≥60times/Min
8. Air consumption: 300L/min
9．Water consumption: 3.2L/min
10. Total Power supply: 11KW
11. Voltage: 380V/50HZ
12. Dimension (Length × Width × Height): 2285×820×1750（mm）
13. Weight: 1600kg
